    Collector

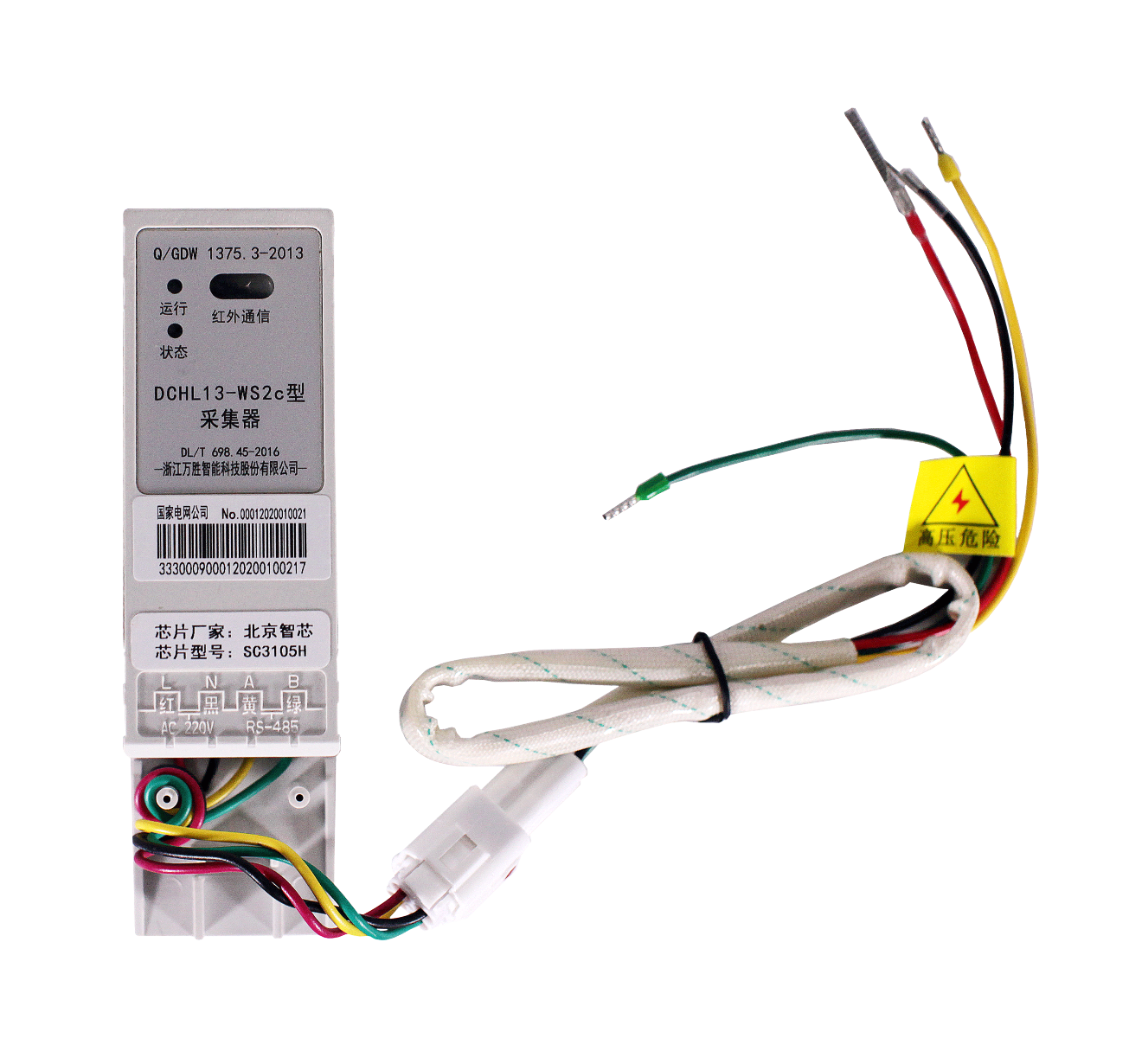

    Type II：DCHL13-WS2c
    It is a component of the low voltage meter reading system. It collects data from non-PLC meters through RS485 and uploads it to the DCU through PLC.
    Main functions and characteristics
    Complete the conversion function of smart metering data for RS-485 communication mode.
    Technical parameter
    • Standards
      Q/GDW10375.3-2019, DL/T 698.45-2017, Q/GDW10376.2-2019
    • Voltage
      220V
    • Frequency
      50Hz
    • Extreme operating temperature range
      -40℃~+70℃
    • Power consumption
      <3W, 5VA
    • Electric meter protocol
      DL/T 698.45-2020, DL/T 698.45-2013, DL/T 645-2007
    • Data transmission interface
      RS-485
    Size Description

    100mm x 40mm x 50mm
